Product Description
Changeover Switch EKHL300
Electrical Features
| 240/415V |
| 16,25,32,40A |
| 50/60Hz |
| 1,2,3,4P |
| 1-0-2 |
| 1500 Cycles |
| 8500 Cycles |
| IP20 |
| -5℃…40℃ |
| 16mm2 |
| On DIN rail EN60715(35mm) by means of fast clip device. |
Application
The Changeover Switch can switch on,Load and break the circuit under normal conditions,using as Switch Disconnectors.
Overall and Installation Dimension(mm)

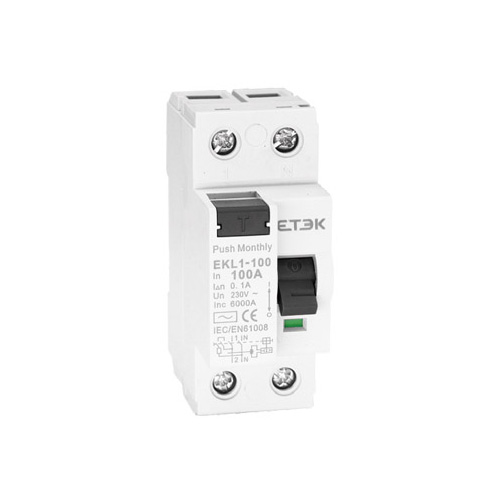

Residual Current Circuit BreakerEKL1-100 6KA
Electrical Features
| Electromagnetic | |
| AC,A,G,S | |
| 80,100A | |
| 2P(1P+N),4P(3P+N) | |
| 2P 240V~ | |
| 4P 415V~ | |
| 500V | |
| 50/60Hz | |
| 30,100,300mA | |
| Rated residual making and breaking capacity (I△m) | 630 |
| 6,000A | |
| ≤0.1S | |
| 4000V | |
| 2.5kV | |
| 2,000 Cycles | |
| 4,000 Cycles |
Installation
| Yes |
| IP20 |
| -5℃~+40℃ |
| -25℃~+70℃ |
| Cable/Pin-type busbar |
| 35mm2 18-2AWG |
| 35mm2 18-2AWG |
| 2.5Nm 22In-lbs |
| On DIN rail EN60715(35mm) by means of fast clip device |
| From top and bottom |
Overall and Installation Dimension(mm)
